Jiadian manufactures 9mm, 12mm and 24mm PET acoustic panels for commercial interiors. We also provide custom manufacturing including CNC cutting, V/U-grooving, molded acoustic panels, fabric wrapping panels and printed surface finishes.
Polyester acoustic absorption foam from Jiadian: 25, 50, 75 and 100mm thick, 2000–4100gsm, NRC 0.85–1.0, in white, black and grey.
Jiadian polyester acoustic absorption foam is a thick sound absorbing material made from polyester (PET) fiber. It is not polyurethane foam: it is a fiber board made from the same polyester fiber family as our PET acoustic panels.

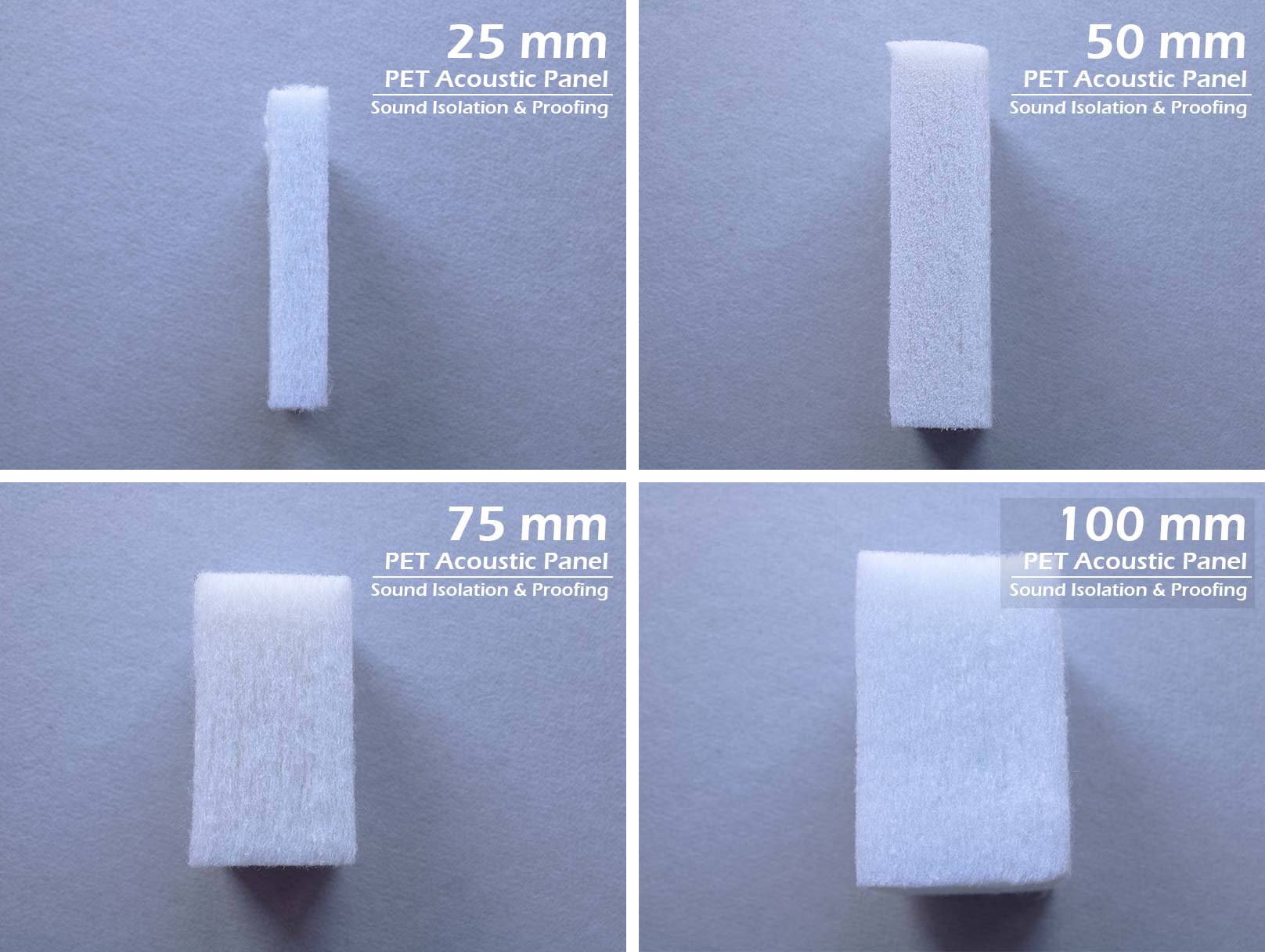

It comes in 25mm, 50mm, 75mm and 100mm thicknesses, each in several densities from 2000gsm to 4100gsm, with an NRC of 0.85 to 1.0. Standard sizes are 600 x 1200mm and 1220 x 2440mm, in white, black or grey.
| Thickness | Available densities |
|---|---|
| 25mm | 2000gsm, 2100gsm, 3000gsm, 4000gsm |
| 50mm | 2000gsm, 3000gsm, 3600gsm, 4000gsm |
| 75mm | 2000gsm, 3000gsm, 3850gsm, 4000gsm |
| 100mm | 2000gsm, 3000gsm, 4100gsm |
A higher density gives a firmer board and more material per square meter. Tell us your application and we will suggest the right combination of thickness and density.
| Material | Polyester (PET) fiber |
| Thickness | 25mm, 50mm, 75mm, 100mm (±1.5mm) |
| Density | 2000–4100gsm, see the table above (±100gsm) |
| Standard sizes | 600 x 1200mm, 1220 x 2440mm (length and width ±4mm) |
| Custom size | Up to 1220 x 2800mm |
| Colors | White, black, grey |
| Sound absorption | NRC 0.85–1.0, depending on thickness and density |
| Fire rating | EN 13501-1 B-s2,d2 (25mm, 2100gsm) |
| Packaging | PP woven bags |
Thicker material absorbs more sound, especially at lower frequencies where thin panels are less effective. Our polyester acoustic absorption foam reaches an NRC of 0.85 to 1.0, depending on thickness and density. Contact us for the test data of the thickness and density you plan to use.
The 25mm, 2100gsm version is classified B-s2,d2 to EN 13501-1. B is the reaction to fire class, s2 is the smoke production class and d2 is the flaming droplets class. For other thicknesses and densities, or for projects that need a specific rating, contact us before you order.
| Polyester acoustic absorption foam | PET acoustic panels | |
|---|---|---|
| Thickness | 25–100mm | 9mm, 12mm, 24mm |
| Main purpose | Thick sound absorbing layer | Decorative acoustic wall and ceiling finish |
| Colors | White, black, grey | About 90 standard colors |
| Sizes | 600 x 1200mm, 1220 x 2440mm | 1220 x 2440mm |
| Fire rating | EN 13501-1 B-s2,d2 (25mm, 2100gsm) | ASTM E84 Class A, EN 13501-1 B-s1,d0 |
If the panel will be seen in the room and needs a color, CNC pattern or grooves, choose our 9mm, 12mm or 24mm PET acoustic panels. If you need more sound absorption from a thicker layer, choose the absorption foam.
Recording studios, rehearsal rooms and home theaters
Wall and ceiling absorbers behind fabric or perforated finishes
Offices, meeting rooms and classrooms that need more low-frequency absorption
Restaurants, halls and other large rooms with long reverberation
| Packaging | PP woven bags |
| Shipping | Sea freight from Shanghai or air freight, EXW or FOB Shanghai |
See shipping, payment and samples for more details, or contact us for a quotation.
No. It is made of polyester (PET) fiber. We call it absorption foam because it is a thick, soft sound absorbing material, but it is a fiber board, not a polyurethane sponge.
Yes. Besides 600 x 1200mm and 1220 x 2440mm, we can make sizes up to 1220 x 2800mm.
